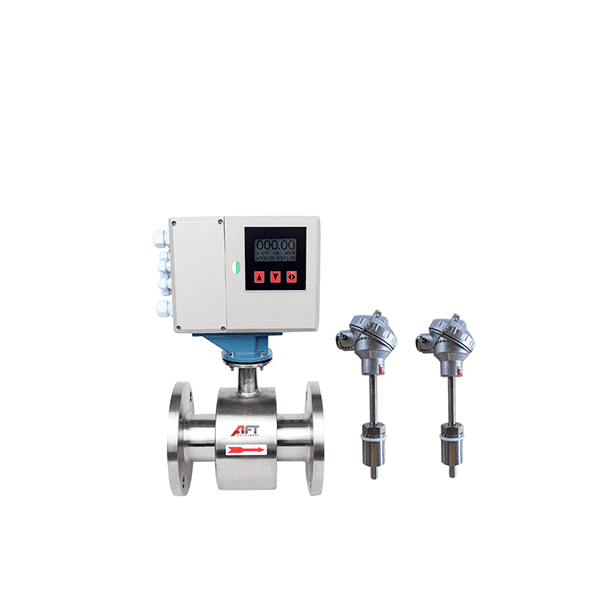

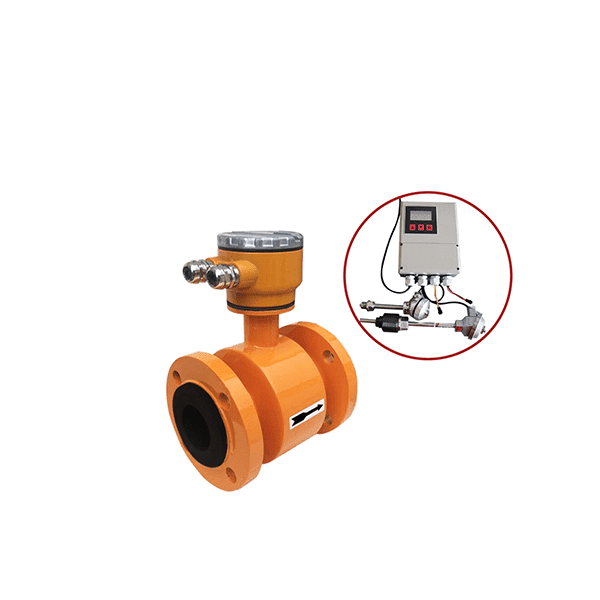

Magnetic BTU Meter
It also called electromagnetic type heat energy meter, It’s a new type of heat meter, mainly used for household heat metering and charging system. The electromagnetic heat meter uses the high precision and high reliability electromagnetic flowmeter for flow measuring,and platinum thermal resistance for temperature measurement.That makes the calorimeter has very excellent measurement performance.
Key Benefits
- The electromagnetic heat meter has low pressure loss and high accuracy
- Strong adaptability, compatible with various pipelines
- Stable and reliable, strong anti-interference
- Good measurement linearity and high repeatability
- Wide measuring range and complete series
- No mechanical inertia, responsive
- The electromagnetic heat meter can provide alarm signal output
Product Description
Theelectromagnetic BTU meter is to install a pair of temperature sensors on the up-pipe and down-pipe through the heat-carrying fluid respectively, and the flowmeter is installed on the fluid inlet or return pipe (different installation positions of the flowmeter will result in different final measurement results) , The flowmeter sends out a pulse signal proportional to the flow rate, a pair of temperature sensors gives an analog signal indicating the temperature, and the integrator collects the signals from the flow rate and temperature sensors, and uses the integration formula to calculate the heat obtained by the heat exchange system
Key feature:
- The electromagnetic heat meter has high accuracy and good energy saving effectThe electromagnetic heat meter has no moving parts, has a long life and is maintenance-free
- Large-screen LCD display in Chinese and English, which can display real-time data such as the supply and return water temperature, instantaneous flow, cumulative flow value, instantaneous cold (heat) value, and cumulative cold (heat) cumulative value of the measured medium.
- Historical data query function, and display in the form of a bar graph, which is convenient for data analysis and viewing
- Parameter settings closer to actual engineering applications, multi-layer password protection to prevent data loss and accidental modification
- Perfect interface function, compatible with current (4-20mA) flow signal and pulse flow signal input
- The electromagnetic heat meter can use ModBus protocol to facilitate integration with other systems.
Three-wire high-precision paired PT1000 temperature sensor is suitable for various complicated installation environments
Application Range
- Heat metering in residential districts
- Office buildings
- Enterprises and institutions
- Central heating
- Heating and air conditioning
Technical Specification
| # | Item Name | Parameter Values |
|---|---|---|
1 | Caliber Range | DN10-DN3000 |
2 | Lining Type | Polychloroprene rubber, PTFE, F46, PFA, silicon fluoride, polyurethane rubber |
3 | Electrode Type | Hastelloy B, Hastelloy C |
4 | Pressure Range | 0.6-10Mpa |
5 | Temperature Range | -25-80 ℃ (integrated type ), - 20-150 ℃ (remote type) |
6 | Accuracy | ±0.5% |
7 | Protection level | Sensor IP65\IP67\IP68 (optional), converter IP65 |
8 | Output Type | Frequency, pulse, 4-20mA, RS485, Modbus protocol; Hart protocol (optional), Profibus DP (optional) |
9 | Power Supply | 85～250V, 45～63Hz, 20VDC --- 36VDC |
