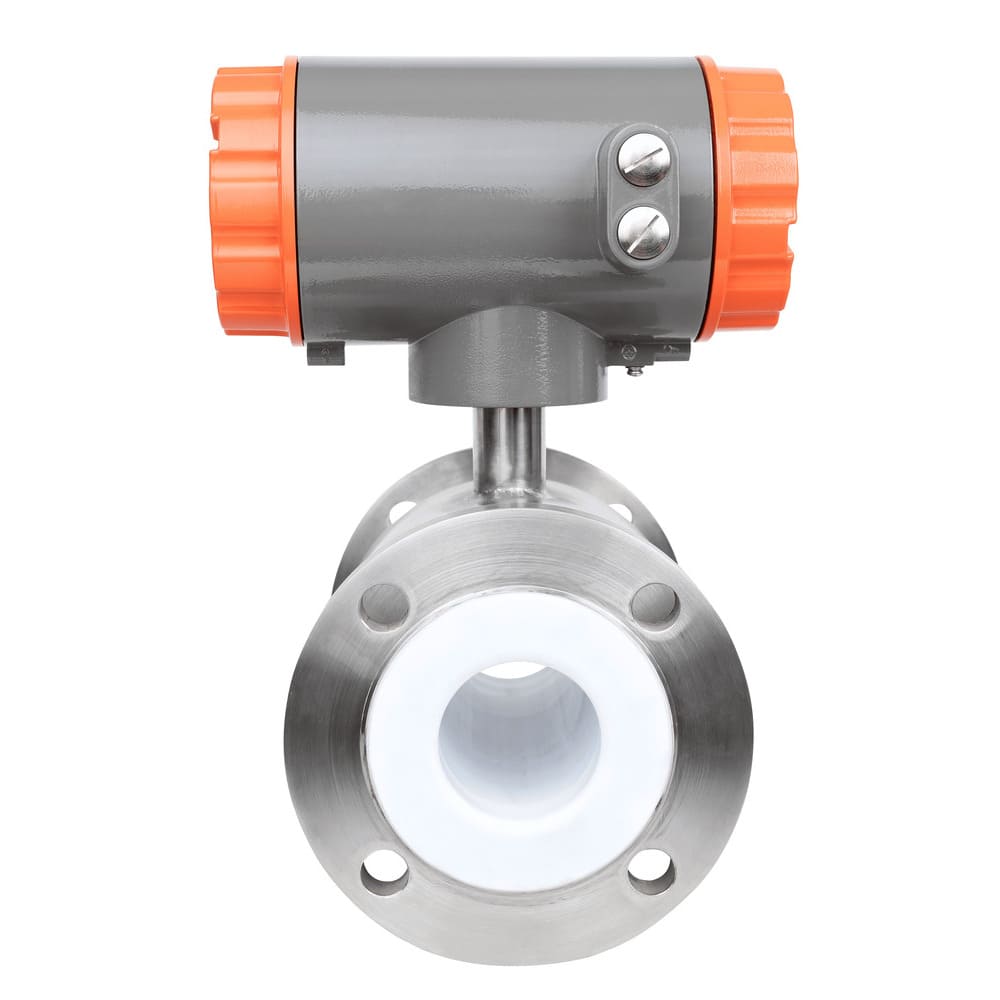

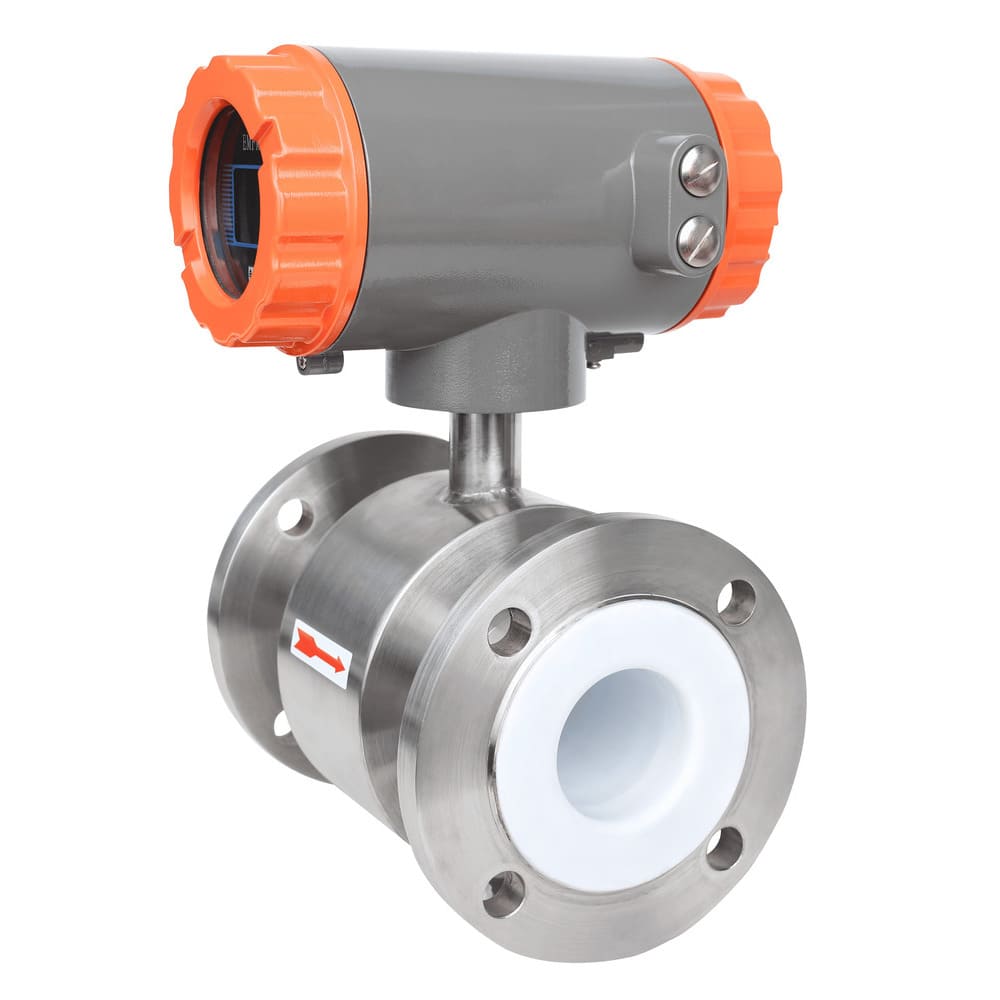

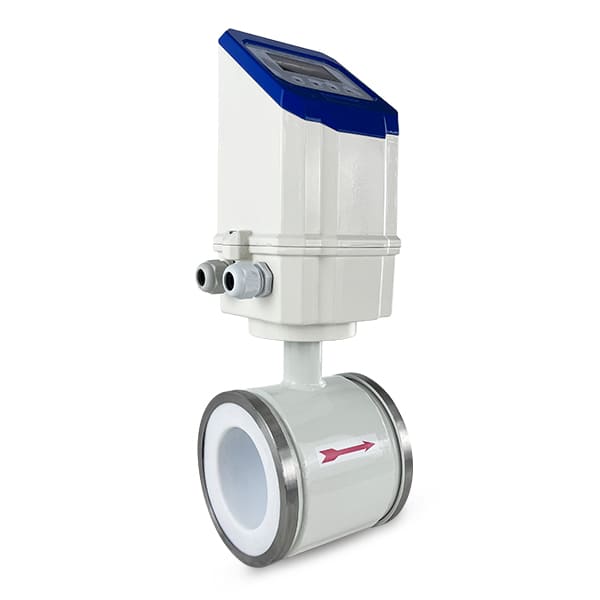

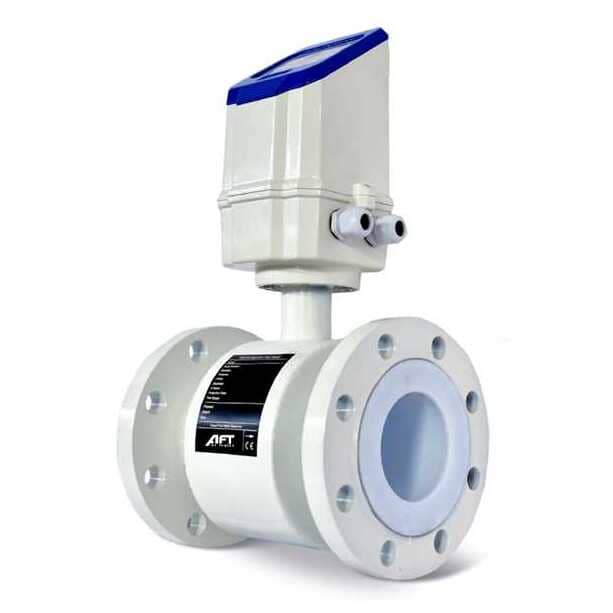

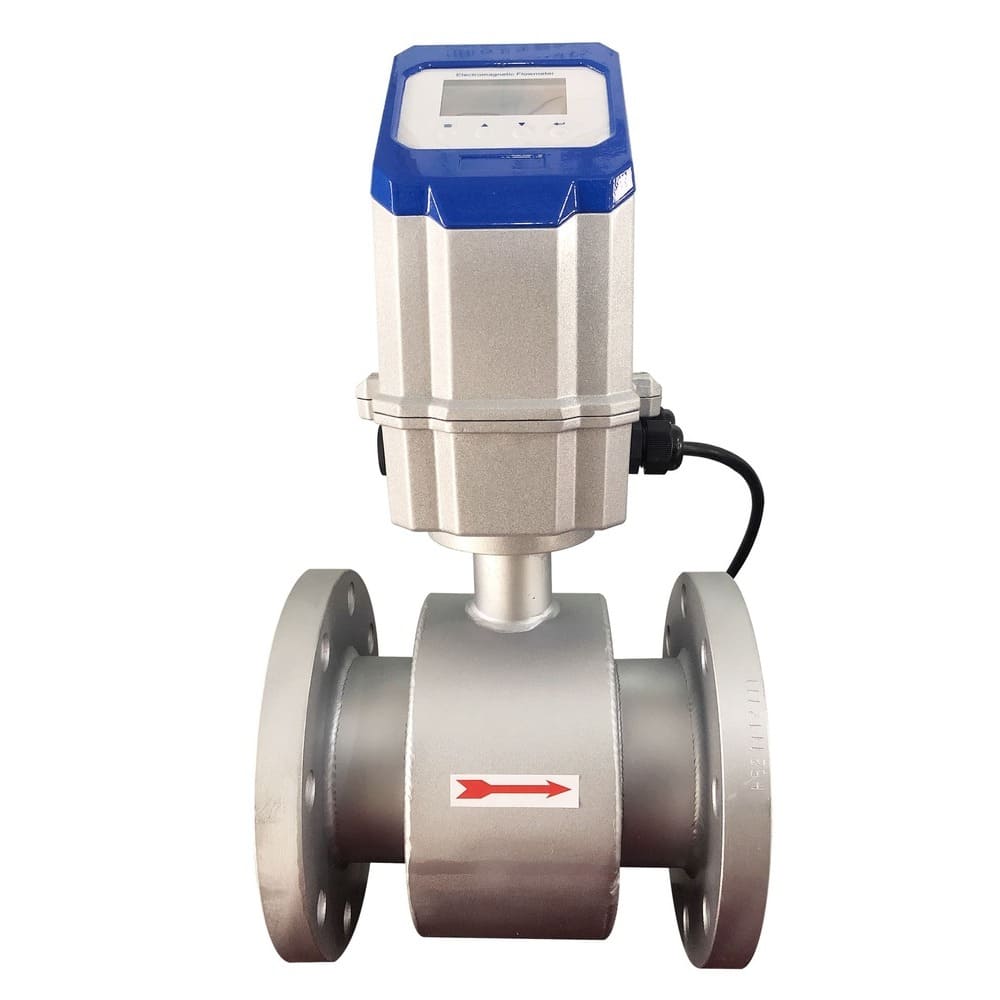

Integrated Electromagnetic Flowmeters
Approved by：CE, SIL-3, ATEX Explosion-proof certification
The AFTLD-X Integrated Electromagnetic Flowmeter is an intelligent, high-performance instrument designed for the accurate measurement of conductive liquids and slurries in closed pipelines.
Built on Faraday’s electromagnetic induction principle, it offers high accuracy, excellent stability, and maintenance-free operation across a wide range of industrial applications such as water supply, wastewater treatment, chemical processing, food production, energy, and metallurgy.
The converter adopts advanced low-frequency or dual-frequency square-wave excitation and digital signal processing technology to ensure stable and precise readings even in low-conductivity or pulsating flow conditions.
-
Integrated compact design: Combines sensor and converter for simple installation and minimal wiring.
-
All-welded sealed structure: Ensures high strength and full IP68 protection for outdoor or underground use.
-
No flow obstruction: Maintains original pipeline pressure conditions.
-
Bidirectional measurement: Calculates forward, reverse, and differential totals.
-
Optional high-pressure type: PFA-lined version rated up to 4.0 MPa, suitable for petrochemical and high-pressure water applications.
- Self-Diagnostic Alarm Function – Automatically triggers an alarm or output warning when internal errors or signal faults are detected.
-
Explosion-proof model: Ex d IIC T6 for hazardous areas.
-
Accuracy: ±0.5%, Can be customized ±0.3%, ± 0.2%
-
Repeatability: ±0.1 %
-
Measuring range: 0.1 – 15 m/s
-
Nominal diameter: DN3 – DN3000
-
Applicable media: Conductive liquids and slurries (conductivity ≥ 5 μS/cm)
-
Pressure rating: 0.6–42 MPa
-
Operating temperature: –25 °C – +160 °C
-
Power supply: AC 220V 50HZ / DC 24V/DC 12V
-
Output signals: 4–20 mA, pulse, RS485 (Modbus RTU), GPRS optional
-
Display: LCD with backlight; clear reading under sunlight or darkness
-
Protection class: Sensor IP65/IP67/IP68 (optional), Converter IP65
-
Explosion protection: Ex d IIC T6 (optional)
-
Calibration: 100 % calibrated on national-standard flow test bench
-
Housing materials: Carbon steel, 304, or 316L stainless steel
-
Lining materials: PTFE, PFA, F46, or rubber (depending on medium)
-
Electrode options: 316L SS, Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum-iridium alloy
-
Low-frequency / dual-frequency excitation to minimize noise and zero drift.
-

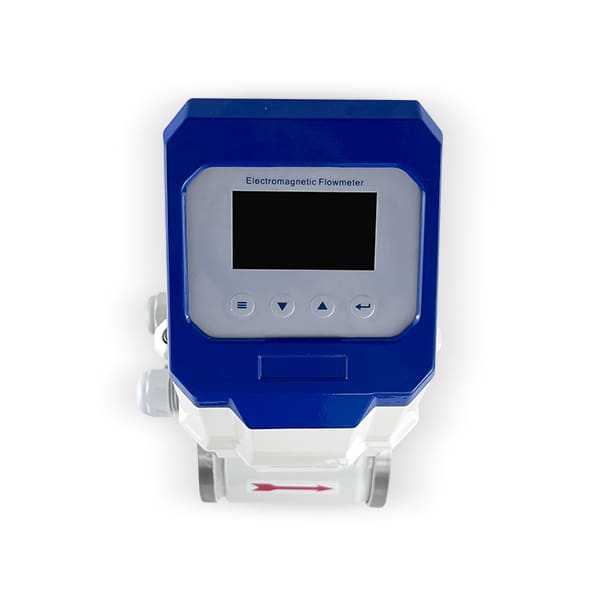

LCD backlight display shows instantaneous flow, cumulative total, velocity, and status indicators.
-
Infrared key operation allows parameter configuration without opening the cover.
-
Outputs: 4–20 mA current, pulse, and RS485 (Modbus RTU) communication; optional GPRS wireless data transmission.
-
Self-diagnostic functions: Empty-pipe detection, high/low flow alarms, excitation fault, and system error alarm.
-
Totalizer modes: Forward total, reverse total, and difference total.
-
Power-off timing and data storage: Internal memory retains total and configuration during power loss.
| Component | Options | |
|---|---|---|
| Lining | PTFE, PFA, F46, Rubber | |
| Electrode | 316L, Hastelloy B/C, Ti, Ta, Pt-Ir | |
| Housing | Carbon steel / 304 / 316L | |
| Connection | ||
| Signal Output | 4–20 mA / Pulse / RS485 / GPRS |
| Industry | Typical Use | Medium |
|---|---|---|
| Water & Wastewater | Flow monitoring, dosing, distribution networks | Conductive water, sludge |
| Chemical & Petrochemical | Process flow measurement | Acids, alkalis, solvents |
| Food & Beverage | Process control and batching | Milk, beer, syrup, juice |
| Power Generation | Cooling water and condensate monitoring | Demineralized water |
| Mining & Metallurgy | Slurry transport and process water | Ore slurry, tailings |
| Pulp & Paper | Stock consistency control | Pulp suspension |
