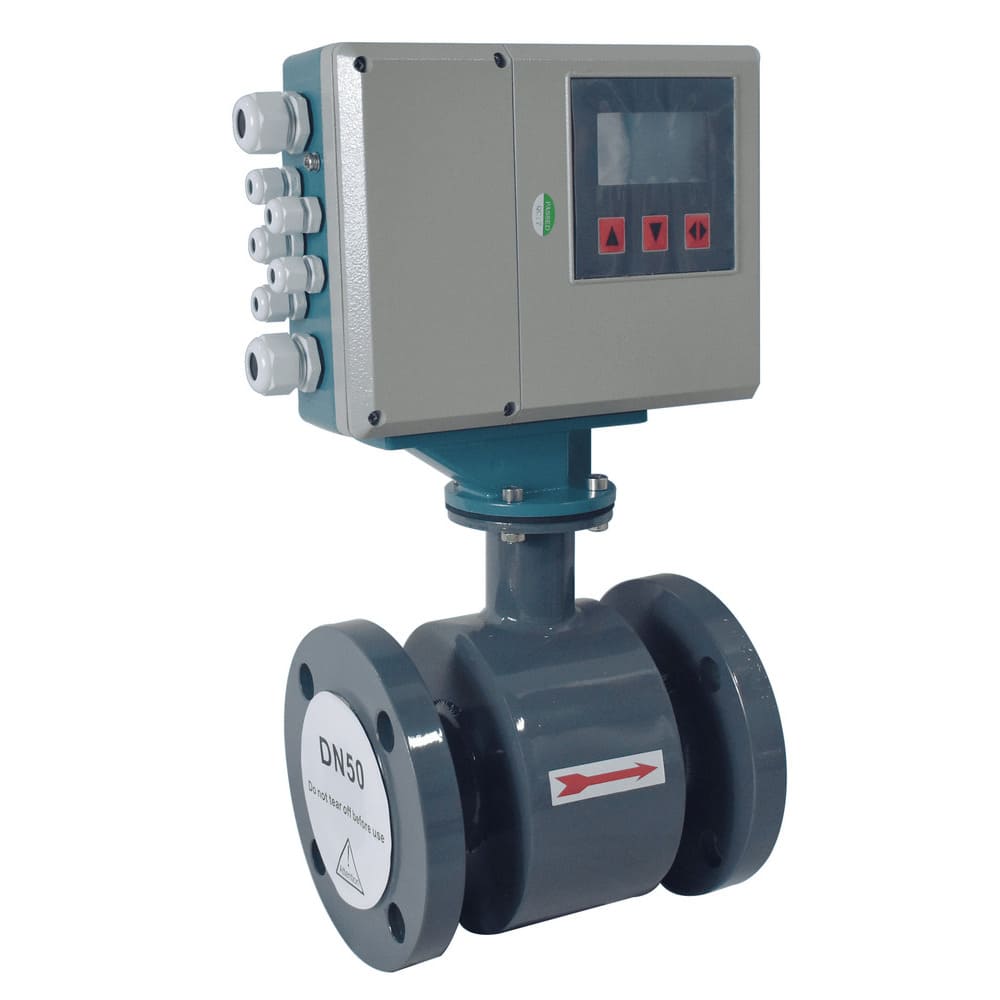

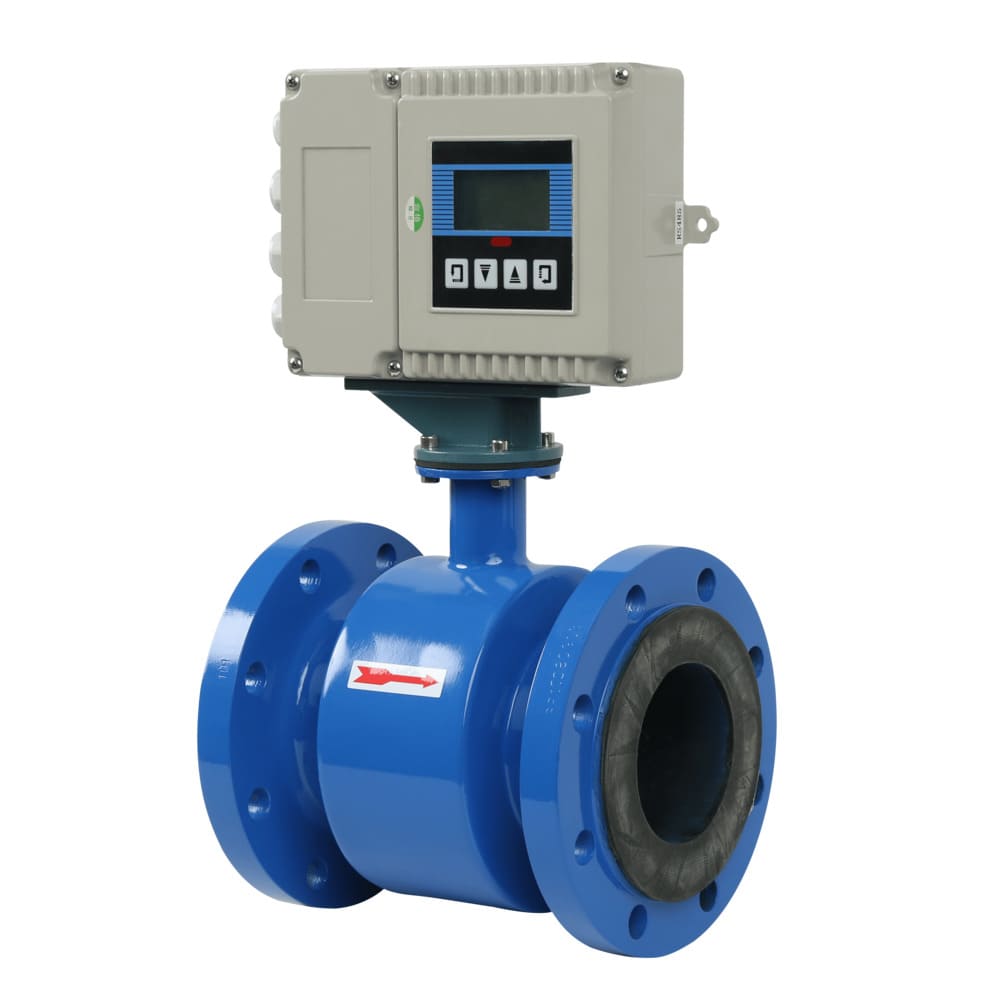

Electromagnetic Flowmeter with measuring pressure

• Dual-Function Integration: Simultaneously measures and outputs both flow rate and process pressure.

• High Accuracy: Achieves ±0.5% accuracy for flow measurement, ensuring precise process control.

• Wide Application Range: Suitable for pipe diameters from DN10 to DN600.

• Robust Construction: No moving parts, resulting in zero pressure loss and minimal maintenance.

• Broad Material Compatibility: Extensive selection of liner and electrode materials for use with corrosive and aggressive media.

• Versatile Outputs: Supports a wide array of communication protocols including 4-20mA, Pulse, RS485, Modbus, and optional Hart.

• High Protection Rating: Available with optional IP67 or IP68 protection for reliable performance in harsh environments.

• Automatic Self-Check Function – Continuously monitors sensor and electronics health, so the system instantly detects internal faults.

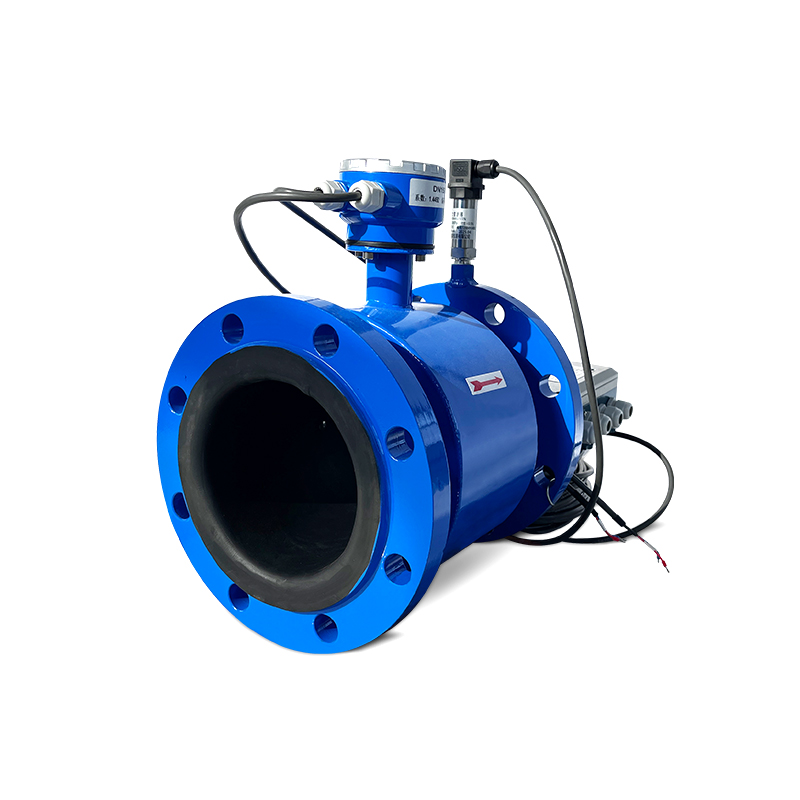

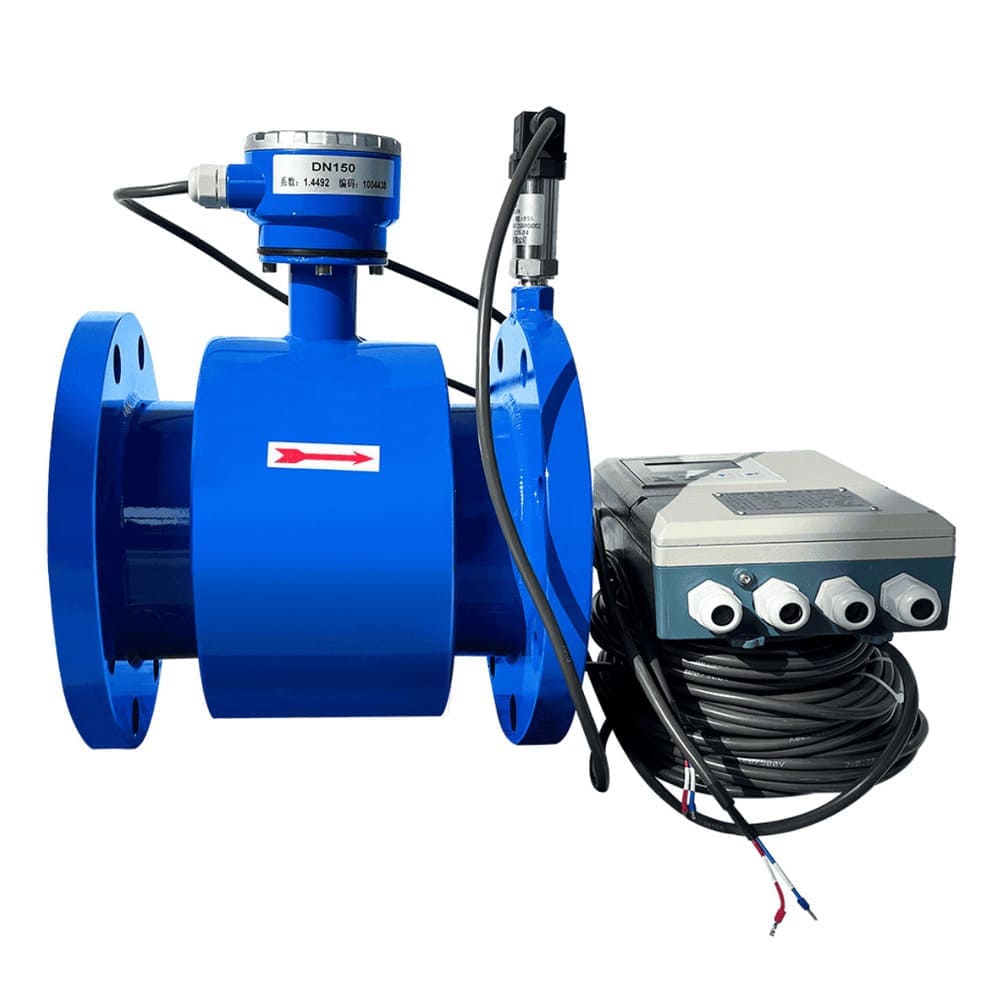

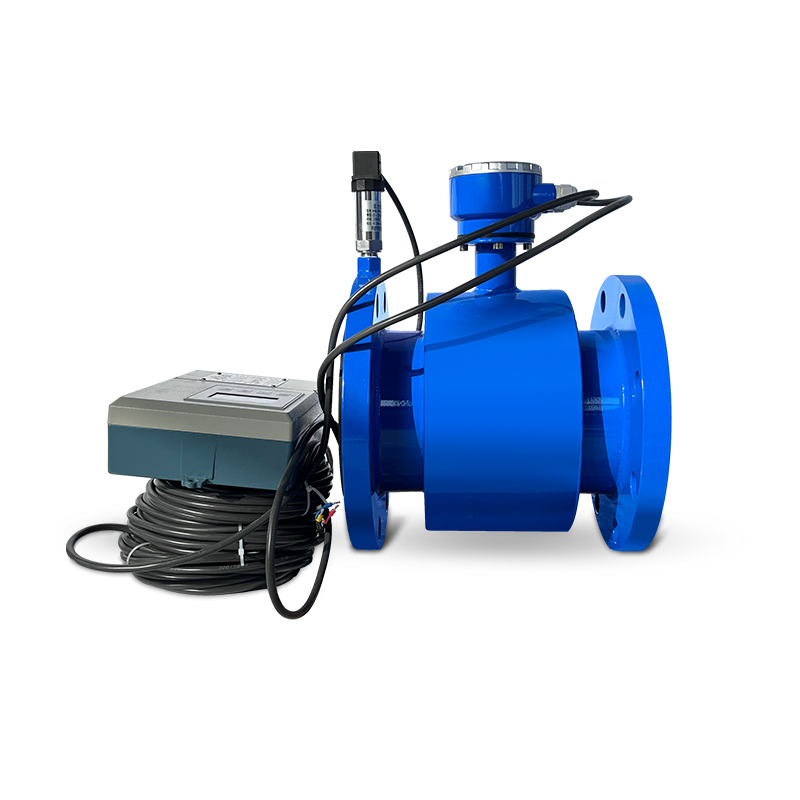

• Integrated Pressure Sensing: Reduces Complexity and Costs, Eliminates the need for a separate pressure transmitter, reducing initial equipment costs, wiring, and installation time. Decreases the number of potential leak points in the pipeline for enhanced safety.

• Synchronized Data Display: Improves Process Diagnostics, Provides time-aligned flow and pressure data, critical for advanced process control, pump performance monitoring, and rapid troubleshooting of system blockages or leaks.

• Obstructionless Design: The open-pipe design creates no additional pressure drop, making it ideal for gravity-fed systems or applications where energy efficiency is paramount. Prevents clogging when used with fluids containing solids.

• Broad Media Compatibility: With a wide choice of liner and electrode materials, the flowmeter can be perfectly matched to your process fluid’s chemical properties and temperature, preventing corrosion and ensuring a long service life.

• High Accuracy and Reliability: Achieves an accuracy of ±0.5% for flow measurement, independent of fluid density, viscosity, and temperature. The robust construction is designed for long-term stability in harsh industrial environments.

• Installation: The meter requires standard straight pipe runs (typically 5D upstream, 2D downstream) for optimal accuracy. The integrated design simplifies the mechanical and electrical installation process compared to separate sensor setups.

• Maintenance: With no moving parts, the meter is virtually maintenance-free. Periodic verification is recommended as part of standard plant quality procedures. The robust sensor design resists buildup, but cleaning may be required for applications with heavy scaling.

This dual-function meter is perfectly suited for applications where pressure is a critical process variable, including:

• Water & Wastewater: Monitoring pressure in municipal distribution networks and treatment plant pump stations to detect leaks and ensure efficient operation.

• Chemical Processing: Ensuring chemical dosing and transfer lines are operating within safe pressure limits.

• Pulp & Paper: Measuring slurry flows while monitoring for potential blockages indicated by pressure changes.

• Mining & Metallurgy: Handling abrasive slurries where both flow consistency and pipeline integrity are paramount.

• HVAC & Power Generation: Optimizing the performance of cooling and heating loops by monitoring both flow and pressure.

• General Industrial: Any application requiring accurate fluid measurement in pressurized closed-pipe systems.
