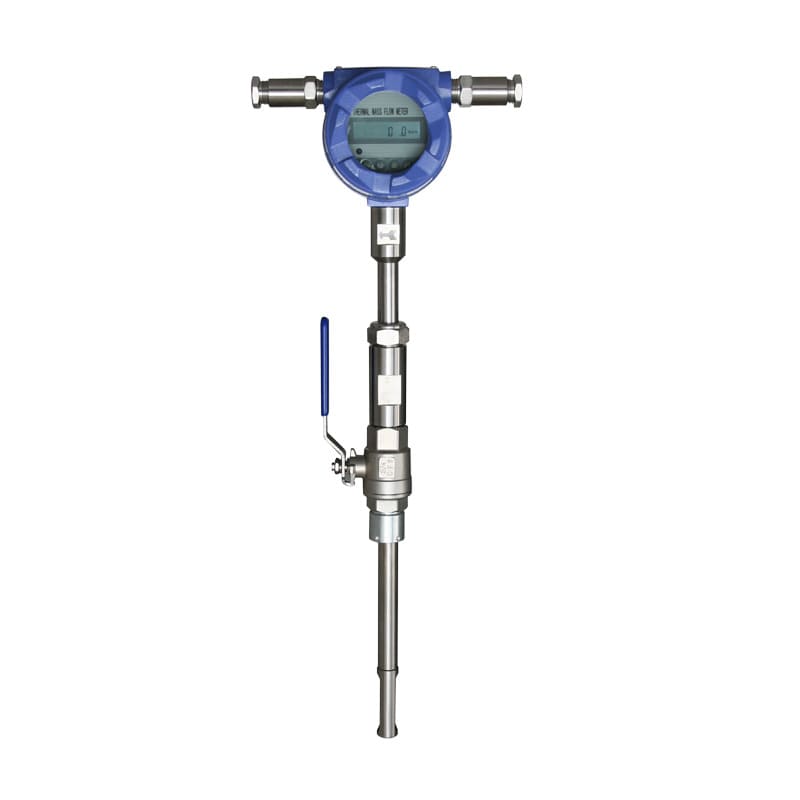

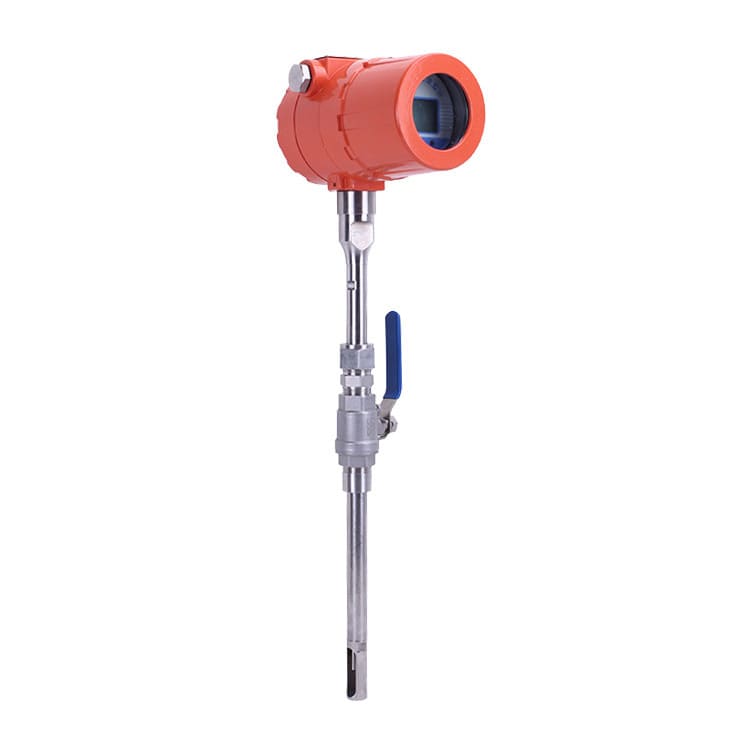

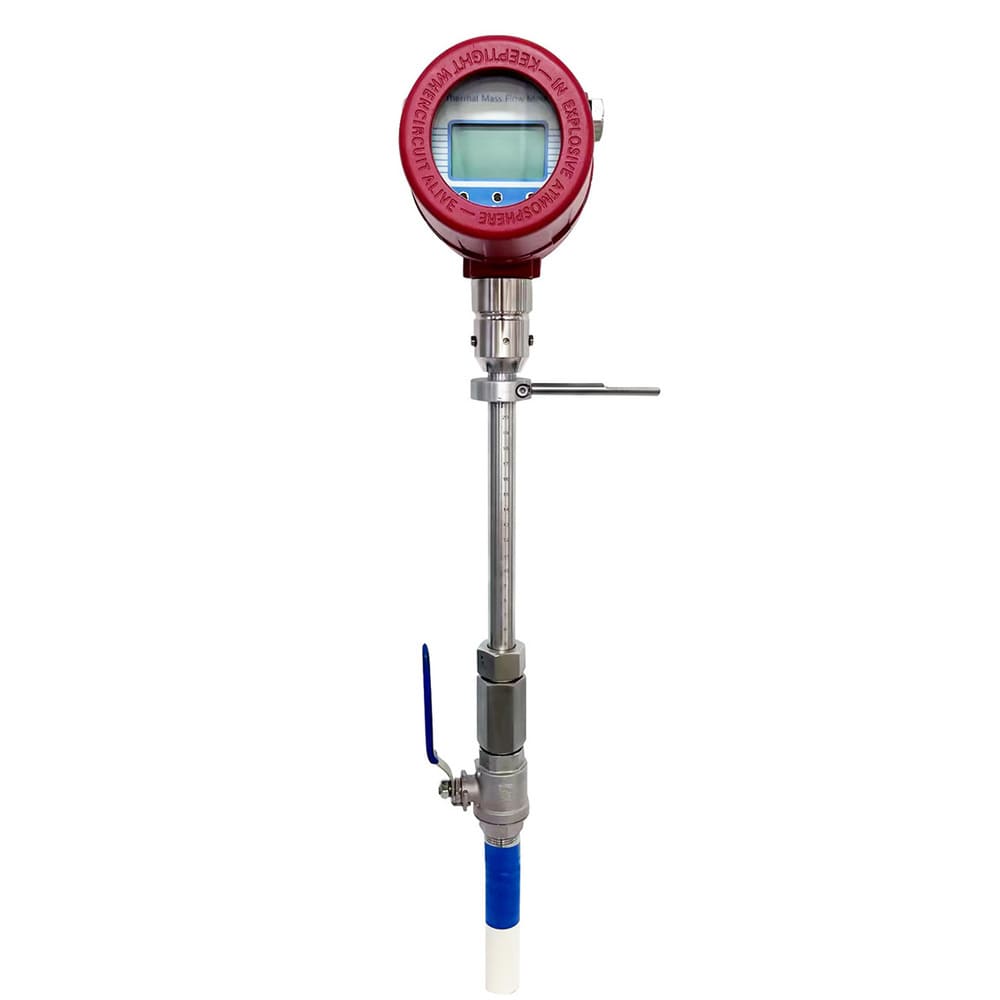

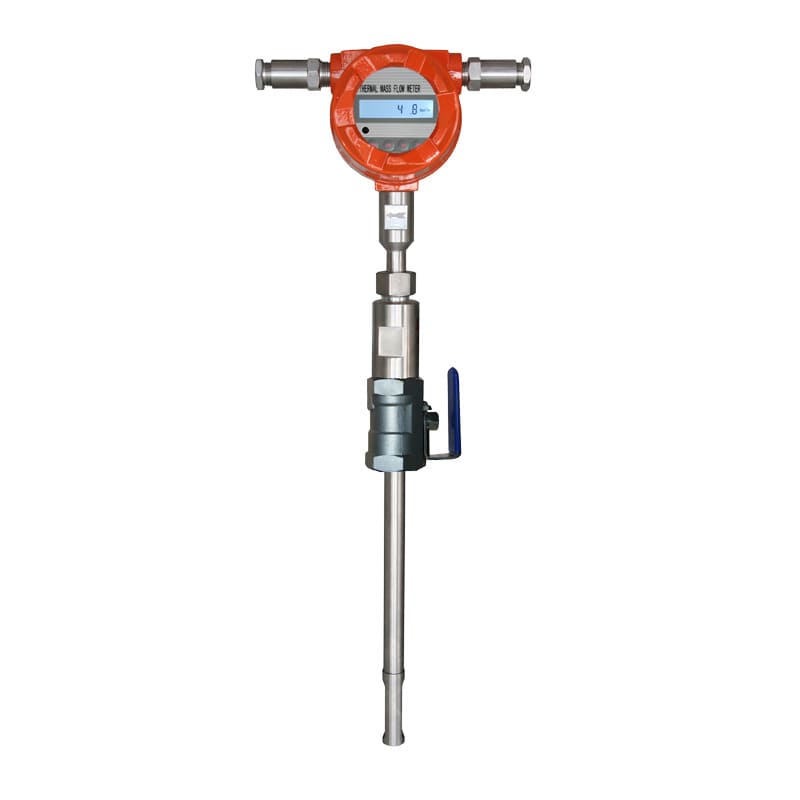

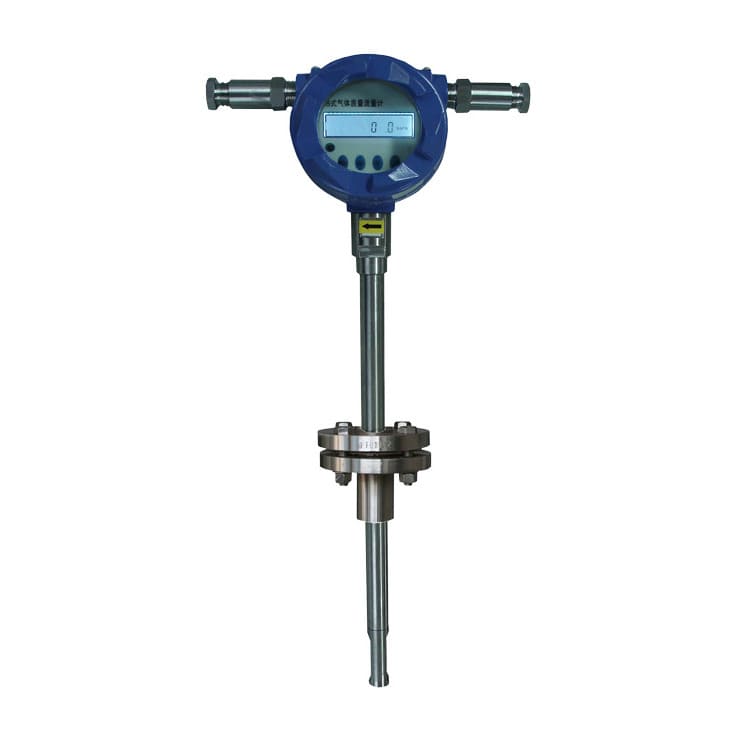

insertion Thermal Gas Mass Flowmeter
Measure gas mass flow directly—without the need for temperature or pressure compensation
Approved by：CE, SIL-3, ATEX Explosion-proof certification
-
Reliable Accuracy Under Varying Conditions — With direct mass flow measurement, your readings remain stable even when process temperature or pressure fluctuates.
-
Minimal System Interference — Its insertion-style probe design ensures measurement with virtually no pressure drop and no moving parts, so maintenance requirements are low and operational impact is minimal.
-
Fast Installation, Low Downtime — The hot-tap version enables live installation and servicing, so you don’t need to shut down production to install or maintain it.
-
Flexible Integration — Standard outputs (analog & digital) and signal interfaces mean straightforward connection to your PLC or DCS systems.
-
Durable Build for Harsh Environments — With robust materials and optional explosion-proof certification, it fits rugged industrial settings reliably.
- Wide Measuring Range: Ideal for both low-velocity gas leak detection and large process pipelines
- Hot-Tapped Insertion Design: Allows online installation and maintenance without stopping production — saving time and reducing downtime costs.
- Digital Signal Processing: Ensures excellent repeatability (±0.25%) and long-term stability.
- Multiple Outputs: (Standard outputs include 4–20 mA, RS-485 (MODBUS/HART), and relay alarm, enabling easy integration into DCS or PLC systems.
- Rugged All-Metal Construction: 316L stainless-steel probe resists corrosion and contamination for stable, long-term performance.
- No Moving Parts, No Pressure Loss: Provides vibration-resistant, maintenance-free measurement ideal for continuous process monitoring.
- Explosion-Proof Options (Ex d Ⅱ CT4): Certified for use in hazardous areas such as chemical and petrochemical plants.
- Compact or Remote Configuration: Flexible installation for both space-constrained and remote monitoring applications.
- Measuring medium: Single- or multi-component gases (except acetylene)
- Pipe size: DN 50 ~ 4000 mm
- Flow velocity range: 0.1 – 120 Nm/s (20 °C, 101.325 kPa)
- Accuracy: ±1 % of reading or ±0.5 % FS
- Repeatability: ±0.25 %
- Response time: 1 s
- Temperature range: Sensor –40 to +350 °C; Transmitter –20 to +45 °C
- Pressure rating: ≤ 6 MPa
- Power supply: DC 24 V / AC 220 V (≤ 18 W)
- Output signals: 4–20 mA (isolated), RS-485 (MODBUS/HART), Pulse, Relay Alarm
- Protection class: Sensor IP68, Transmitter IP65–IP67
- Materials: Probe 316 L SS | Body carbon steel or SS
- Installation type: Standard or hot-tapped insertion
- Explosion-proof rating: Ex d Ⅱ CT4
-
Explosion-proof (HGF-3000F)
-
High-temperature version (≤ 350 °C)
-
Remote split-type converter (wall or panel mount)
-
Special gas calibration (H₂, O₂, CH₄ mixes)
-
Non-welded pipe fixture kit for PVC / cast iron / FRP pipes.
-
Quick installation: hot-tapped mounting allows setup without halting production.
-
Flexible orientation: horizontal upward position recommended for cleanest readings.
-
Minimal straight-run requirements: 10 × DN upstream and 5 × DN downstream for best accuracy.
-
Automatic self-diagnosis: built-in functions continuously monitor system health.
-
Simple calibration: on-screen parameter setting or remote controller.
-
Maintenance-free: no moving components, no drift, and excellent vibration resistance.
-
Power & Energy: primary/secondary air flow in boilers and blast furnaces
-
Steel & Metallurgy: blast furnace gas, coke oven gas, flue gas
-
Petrochemical: process gas, flare gas, hydrogen, nitrogen, oxygen
-
Environmental & Water Treatment: aeration, chlorine dosing, biogas monitoring
-
Compressed Air Systems: factory automation and energy management
-
Semiconductor / Electronics: clean-gas flow control
